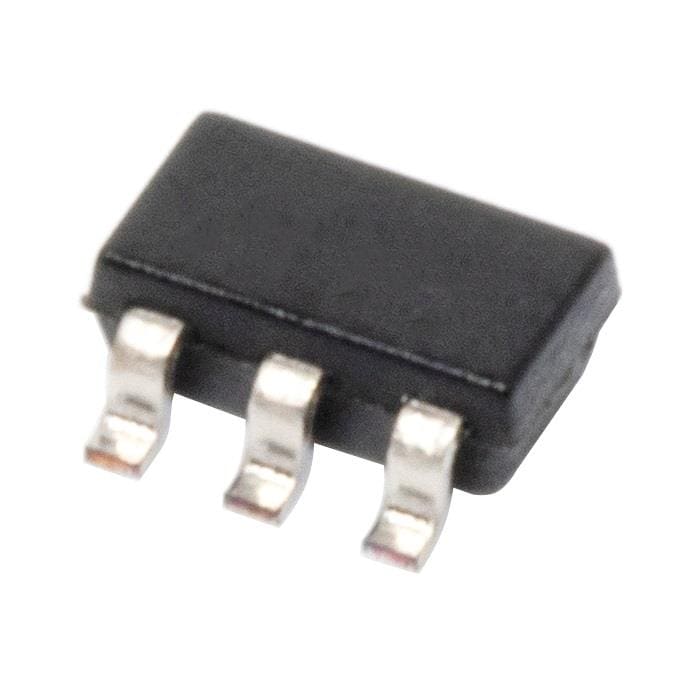

This amplifier has ultralow offset, drift, and bias current. The AD8628/AD8629/AD8630 are wide bandwidth auto-zero amplifiers featuring rail-to-rail input and output swing and low noise. Operation is fully specified from 2.7 V to 5 V single supply (±1.35 V to ±2.5 V dual supply).

The AD8628/AD8629/AD8630 provide benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices, Inc., topology, these zerodrift amplifiers combine low cost with high accuracy and low noise. No external capacitor is required. In addition, the AD8628/ AD8629/AD8630 greatly reduce the digital switching noise found in most chopper-stabilized amplifiers.

FEATURES

• Lowest auto-zero amplifier noise
• Low offset voltage: 1 μV
• Input offset drift: 0.002 μV/°C
• Rail-to-rail input and output swing
• 5 V single-supply operation
• High gain, CMRR, and PSRR: 130 dB
• Very low input bias current: 100 pA maximum
• Low supply current: 1.0 mA
• Overload recovery time: 50 μs
• No external components required
• Qualified for automotive applications
